In modern industries where accuracy, reliability, and efficiency are crucial, the Cycloidal Gearbox has become one of the most trusted solutions for motion control. As automation, robotics, and advanced machinery continue to evolve, engineers are demanding compact mechanisms that deliver maximum torque with minimal backlash—and that’s exactly where cycloidal technology stands out.

This blog breaks down what a cycloidal gearbox is, how it works, where it’s used, and why it outperforms traditional gear systems across many applications.

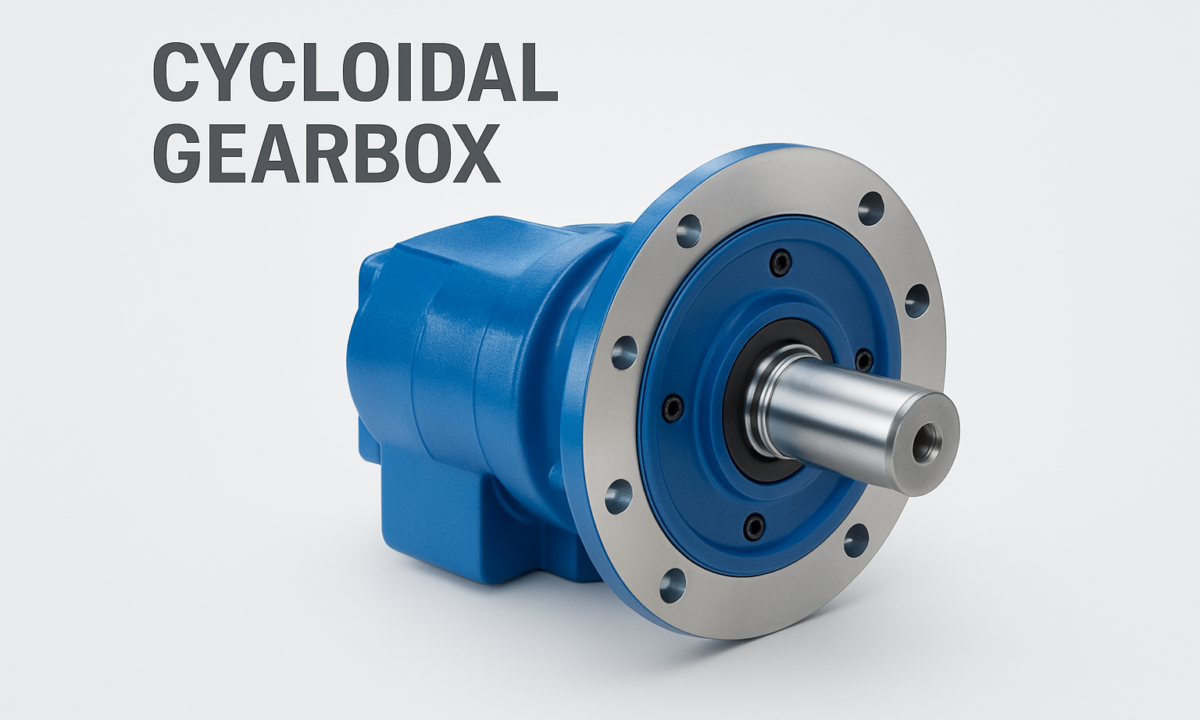

What Is a Cycloidal Gearbox?

A Cycloidal Gearbox is a precision motion device that uses a unique cycloidal disc and rolling-element mechanism to transmit high torque. Unlike traditional gear systems that rely on tooth-to-tooth sliding contact, cycloidal drives use a smooth cam-driven orbital motion.

This design provides:

• Ultra-low backlash
• High torque density
• Excellent shock-load protection
• Consistent and long-lasting performance

For industries prioritizing accuracy and durability, cycloidal technology has become a clear favorite.

Why Cycloidal Gearboxes Are Becoming Industry Standard

1. Ultra-Low Backlash

Cycloidal drives offer near-zero backlash, which makes them ideal for robotics, CNC applications, and precision automation tasks where repeatability is essential.

2. High Torque in a Compact Design

Multiple lobes work together simultaneously, allowing cycloidal drives to deliver high torque from a much smaller footprint compared to conventional gear designs.

3. Superior Shock Resistance

Because the load is shared across several contact points, cycloidal gearboxes can absorb sudden torque peaks without damage.

4. High Mechanical Efficiency

With minimal friction and a smooth internal motion, many cycloidal gearboxes achieve efficiency levels of 90% or higher.

5. Long-Term Durability

Uniform load distribution results in lower wear and ensures the gearbox performs reliably even under demanding industrial cycles.

How a Cycloidal Gearbox Works

Inside a cycloidal gearbox, the input shaft rotates an eccentric cam, causing the cycloidal disc to move in an orbital path. As the disc orbits, its lobes engage with pins or needle bearings, causing a slow, high-torque rotation at the output shaft.

This mechanism allows:

• Multiple teeth engagement at once
• Smooth torque transmission
• High load-carrying capacity
• Exceptional positioning accuracy

The design ensures consistent performance even under heavy-duty or repetitive operations.

Applications of Cycloidal Gearboxes

Cycloidal drives are widely used across industries where precision and reliability are non-negotiable. Common applications include:

• Robotics & Automation Systems
• CNC Machines & Machine Tools
• Packaging and Food Processing Equipment
• Material Handling Systems
• Industrial Conveyors
• Servo-driven mechanisms
• Automated assembly systems

Whether it’s the arm of a robot or the drive of a packaging machine, cycloidal technology ensures stable, controlled motion.

Comparing Cycloidal and Conventional Gearboxes

Here’s a quick comparison to understand why cycloidal drives are preferred in many modern applications:

Cycloidal technology clearly offers benefits that make it the top choice for precision-driven industries.

Why Choose Cycloidal Gearboxes for Your Machinery?

If your machines require:

• Accurate motion
• High load capacity
• Long service life
• Compact design
• Smooth and stable performance

then a Cycloidal Gearbox is the ideal choice. Its unique mechanical design allows it to outperform traditional gear systems in both performance and durability.

For industries preparing for Industry 4.0 automation, cycloidal gear drives provide the perfect blend of precision, reliability, and efficiency.
